TerraNexus

At Pangaea Innovations we are pioneers in the design and implementation of Discrete Global Grid Systems (DGGS) - particularly in 3D and 4D. Our DGGS platform service, TerraNexus, represents a way to bypass the computation burden of conventional spatial data integration methods.

A DGGS is a hierarchical set of tessellations of the entire Earth from global scales down to cubic microns. Each zone/cell of the DGGS has a unique identifier that can be used to provide an index reference to each object of a spatial dataset. Once indexed, these objects and features can then be queried and spatially integrated together by single index lookup operations rather than complex and computationally intensive spatial data operations.

And, because the process of mapping/indexing a spatial dataset to a DGGS is a single once off operation, DGGS provide a massive efficiency gain in the long term and ongoing use of that data.

Patented Technology

TerraNexus is a multi-DGGS data integration platform that enables data to be mapped to, and integrated across, multiple DGGS instances in multiple dimensions (from 2D through to 4D). This capability is underpinned by our Patented methodology that enables standard 2D Surface DGGS implementations to be extended to full 3D/4D Volumetric DGGS implementations. Our patent also describes a unified global indexing approach that enables all TerraNexus DGGS instances to be accessed using the same index search algorithm regardless of the structural and software differences between each DGGS instance.

Patent References

International Standards Compliant

Interoperability is one of the greatest challenges we face in our endeavours to deliver informed and evidence-based decisions from the massive amount of data we are collecting around the world at an ever increasing rate. International Standards provide a common and consistent basis that we can use to manage and share these data within and between origanisations and across different technical domains.

TerraNexus is compliant with a number of key international standards that govern the storage, encoding and secure sharing of geospatial data across the internet. This enables TerraNexus and the data mapped to it to be deployed within and across our customers existing data infrastures without requiring any major redesign of their systems.

Compliance with International Standards

Published International Standards

Standard	Reference	Compliance Level
OGC Abstract Specification Topic 21 - Discrete Global Grid Systems - Part 1 Core Reference system and Operations and Equal Area Earth Reference System (ISO 19170-1:2021)	OGC 20-040r3 ISO 19170-1:2021	Fully Compliant Reference Implementation
OGC API - Features - Part 1: Core corrigendum	OGC 17-069r4 ISO 19168-1:2020	Fully Compliant
OGC API - Features - Part 2: Coordinate Reference Systems by Reference corrigendum	OGC 18-058r1	Fully Compliant
OGC API - Common - Part 1: Core	OGC 19-072	Fully Compliant
OGC API - Processes - Part 1: Core	OGC 18-062r2	Fully Compliant
OGC API - Tiles - Part 1: Core	OGC 20-057	Fully Compliant
OGC GeoTiff Standard	OGC 19-008r4	Fully Compliant
OGC Network Common Data Form (NetCDF) Core Encoding Standard	OGC 10-090r3	Fully Compliant
OGC Hierarchical Data Format Version 5 (HDF5®) Core Standard	OGC 18-043r3	Fully Compliant
OGC Abstract Specification Topic 20 – Observations, measurements and samples	OGC 20-082r4	Fully Compliant
OGC® Publish/Subscribe Interface Standard 1.0 – Core	OGC 13-131r1	Fully Compliant
OGC® Catalogue Services 3.0 – General Model	OGC 12-168r6	Fully Compliant
OGC Abstract Specification Topic 1 - Spatial schema	OGC 17-087r13 ISO 19107:2019	Fully Compliant
OGC Abstract Specification Topic 2 - Referencing by coordinates (Including corrigendum 1 and corrigendum 2)	OGC 18-005r8 ISO 19111:2019	Fully Compliant
OGC Abstract Specification Topic 5 - Features	OGC 08-126 ISO 19101:2002	Fully Compliant
OGC Abstract Specification Topic 7 - Earth Imagery	OGC 04-107 ISO 19101:2002	Fully Compliant
OGC Abstract Specification Topic 8 - Relationships Between Features	OGC 99-108r2	Fully Compliant
OGC Abstract Specification Topic 10 - Feature Collections	OGC 99-110	Fully Compliant
OGC Abstract Specification Topic 11 - Metadata	OGC 11-111r1 ISO 19115-1:2014	Fully Compliant

Draft International Standards

Standard	Reference	Compliance Level
OGC Abstract Specification Topic 21 - Discrete Global Grid Systems - Part 2 3D Equal Volume Zones [DRAFT] (ISO 19170-2)	OGC 20-047 [DRAFT]	Reference Implementation - Informing the Development of the Standard
OGC Abstract Specification Topic 21 - Discrete Global Grid Systems - Part 3 Temporal Zones [DRAFT] (ISO 19170-3)	OGC 20-048 [DRAFT]	Reference Implementation - Informing the Development of the Standard
OGC API Discrete Global Grid Systems - Part 1: Core [DRAFT]	OGC 21-038 [DRAFT]	Reference Implementation - Informing the Development of the Standard
OGC API - Features - Part 3: Filtering [DRAFT]	OGC 19-079r1 [DRAFT]	Fully Compliant
OGC API - Features - Part 4: Create, Replace, Update and Delete [DRAFT]	OGC 20-002 [DRAFT]	Fully Compliant
OGC API - Common - Part 2: Collections [DRAFT]	OGC 20-024 [DRAFT]	Fully Compliant
OGC API - Processes - Part 2: Deploy, Replace, Undeploy [DRAFT]	OGC 20-044 [DRAFT]	Fully Compliant
OGC API - Processes - Part 3: Workflows and Chaining [DRAFT]	OGC 21-009 [DRAFT]	Fully Compliant
OGC Features & Geometry JSON [DRAFT]	OGC 21-045r1 [DRAFT]	Fully Compliant
OGC Common Query Language (CQL2) [DRAFT]	OGC 21-065 [DRAFT]	Currently Implementing

Secure and Scalable By Design

TerraNexus is secure and scalable by design.

Built on a Django web application interface, TerraNexus, is able to provide direct access and integration to state-of-the-art Data Science routines using python (arguably the best software language in the world for Data Science Applications).

System and user access security is provided by the Django Rest Framework (DRF) through a combination of:

• Java Web Tokens (JWT);
• Single Sign-On;
• Multi-Factor Authentication (MFA); and,
• Role-level Access restrictions to various functions and data.

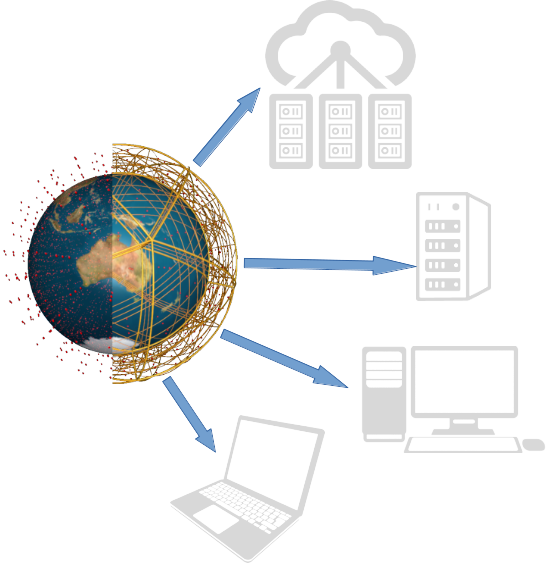

Scalability is ensured by a Kubernetes Cluster Deployment model. This enables TerraNexus to be deployed across a wide range of compute infrastructures, including:

• Laptop Computers;
• Desktop Computeers;
• Private (Bare Metal) Servers (e.g. Equinix); and,
• High Performance Compute (HPC) / High Performance Data (HPD) Infrastructures (e.g. National Compute Infrastructure, Australian National University); and,
• Public/Commercial Cloud Compute Platforms (e.g. Amazon Web Services (AWS), Google Compute Platform (GCP), and Microsoft Azure)

Scalable Billing Options

We offer TerraNexus as a "DGGS as a Service" (SaaS) product.

And because of the modular and containerised architecture TerraNexus is built on, we can deploy TerraNexus on almost any compute hardware you like.

We charge a one-off deployment fee plus a flexible usage fee that can be structured on system uptime, system usage, or number of API calls.

If you have multiple data integration use cases across your organisation and would like to benefit from TerraNexus at the organisation level, we are happy to discuss Enterprise Deployment Solutions.
